Getting started TV Clear earbuds

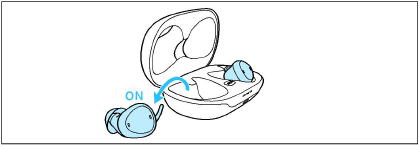

Switching earbuds ON or OFF is easy

The earbuds automatically switch on when removed from the case. They switch off when back in the case.

The indicator lights will light up:

Indicator light		Meaning
	green	Battery ok
	red	Battery <20%, consider charging

In the event an earbud switched off, a short press on the button switches it on again.

Put the earbuds into pairing mode

1.Make sure both earbuds are placed in the case correctly.

2.Press and hold the pairing button for 2 seconds, until the indicator light starts to blink blue.

3.Wait until all 3 indicator lights blink blue (this may take up to 10 seconds). The pairing mode will stop after 8 minutes or when the pairing was successful.

4.Leave the earbuds in the case and continue to Connecting your earbuds to your phone (or tablet) (> Connecting your earbuds to your phone (or tablet)) or Connecting your earbuds to the transmitter „TV Connector“ (> Connecting your earbuds to the transmitter „TV Connector“).

Connecting your earbuds to your phone (or tablet)

If it is the first time connecting the earbuds to the device, you must put them into pairing mode as described in chapter Put the earbuds into pairing mode(> Put the earbuds into pairing mode). After they have been paired, the earbuds should connect automatically when removed from the case.

1.Open the “Bluetooth” settings and activate Bluetooth on your phone.

2.Wait until you see the „Sennheiser TV Clear“ in the list of available devices and select it.

3.Your phone will now connect to the earbuds and the indicator lights of the charging case will stop blinking.

4.Insert the earbuds into both ears. You will hear a confirmation when inserted. The sound from your phone will be played through the earbuds when connected.

If the Sennheiser TV Clear app is installed and connected, you may see “Sennheiser TV Clear LE” in the list of paired devices. Do not select it.

When you remove both earbuds from the ear, the sound will be paused. This behavior can be configured in the Sennheiser TV Clear app.

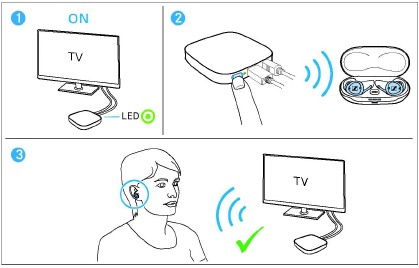

Connecting your earbuds to the transmitter „TV Connector“

If it is the first time connecting the earbuds to the TV Connector, you must put them into pairing mode as described in chapter Put the earbuds into pairing mode(> Put the earbuds into pairing mode). After they have been paired, the earbuds should connect automatically when removed from the case.

When the transmitter was purchased in the TV Clear Set, transmitter and earbuds are already paired during production. Just open the lid of the charging case and proceed to the chapter Daily use of the transmitter TV Connector(> Daily use of the transmitter TV Connector).

1.Make sure the transmitter is properly connected to the TV or sound source (> Getting started transmitter TV Connector) and switch it on (> Switching ON audio transmission).

2.Press the pairing button on the back of the transmitter.

The transmitter will now connect to the earbuds and the indicator lights of the charging case will stop blinking.

3.Insert the earbuds into both ears. You will hear a confirmation when inserted. The sound from your transmitter will be played through the earbuds when connected.

Additional information about pairing

•The earbuds can be paired to a maximum of 6 devices. A 7th pairing will replace the least used device.

•All 3 indicator lights will blink blue during pairing. This can take up to 2 minutes, but typically is finished within a few seconds.

•The earbuds must be paired only once to a phone, tablet or transmitter „TV Connector“. Devices remain paired after powering off and will reconnect automatically when powered on if they are within reach.

•To connect manually, go to your devices Bluetooth menu, select “Sennheiser TV Clear” from the list or short press either of the earbud buttons while wearing them.

Fit your earbuds perfectly to your ears

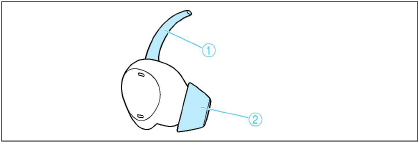

The silicone ear adapter is an important part of your earbuds and is available in three sizes – 1, 2 and 3. The size is indicated on the adapter.

1.The rentention finger helps to hold the earbud in place.

2.The dome must sit firmly on your ear canal for a good seal.

If the default medium size adapter (size 2) is too large or small for you, choose size 1 or 3.

1.Pull the adapter carefully from the earbud.

2.Gently insert earbud into the adapter that fits you best.

3.Repeat for the other side.

The size of the adapter may be different for the left and right ear.

Make sure the left and right side of the adapter and earbud are aligned (L= left side, R = right side).

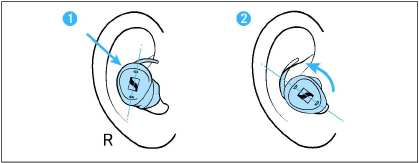

Place the earbuds into your ears

The left and right side indication (L, R) is printed on the adapter. Select the correct side for insertion into your ear.

1.With the dome pointing to your ear canal and downward, gently insert the earbud.

2.Rotate the retention until it sits firmly and comfortably in the bowl of the ear.
